Radar Flow Meter
1. High measurement accuracy
2. Ultra-low energy consumption
3. High recognition accuracy
4. Huge amount of data

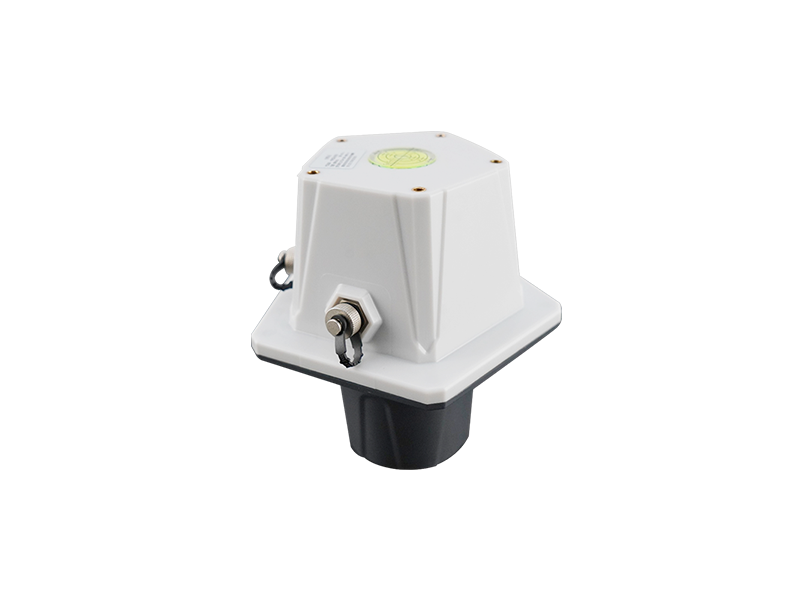

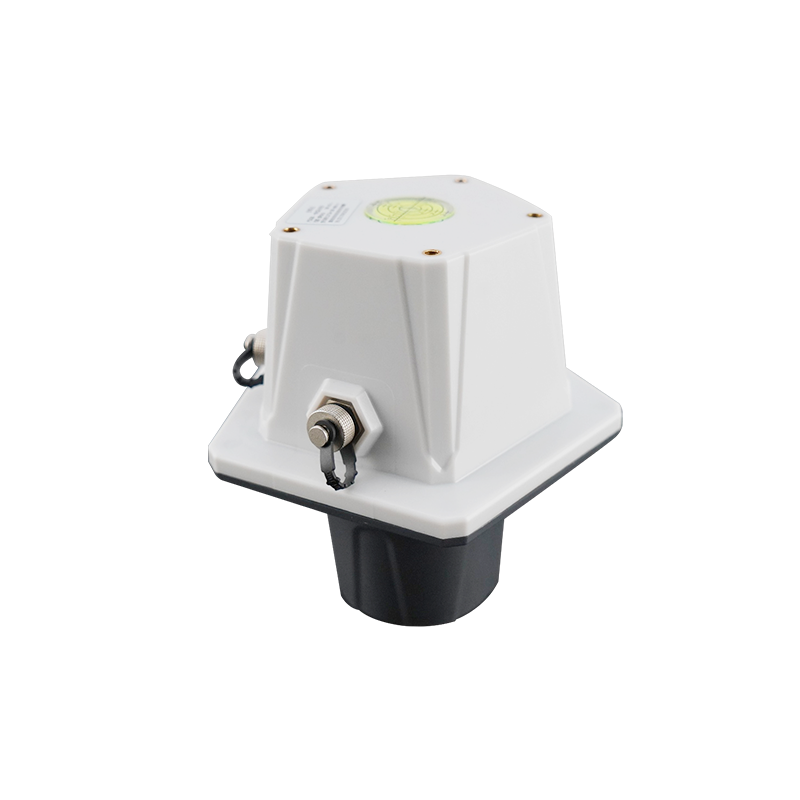

The all-in-one radar water level gauge is a product developed for small range application scenarios. The 60Ghz frequency modulated continuous wave (FMCW) method is used for water level measurement, and the measurement process is not affected by factors such as temperature, humidity, pollutants and floating objects in the water, and the measurement accuracy is high, the power consumption is low, and the size is small.
It can be widely used in urban sewage discharge systems such as manholes, pumping stations, sluice gates, and outlets, and can also be used for water level and flow monitoring scenarios of trunk canals, branch canals, bucket canals, agricultural canals, hair canals and other channels for farmland irrigation.
Specifications
1. Water level range: 0-40 meters
2. Flow range: determined according to the size of the weir groove or the flow relationship
3. MEASUREMENT ACCURACY: 5MM
4. Measurement blind area: 0.15 meters
5. Water level reporting interval: 5 minutes - 24 hours, power supply can be set: battery (plus solar panels)
6. Water level calibration: mobile APP, wireless Bluetooth connection
7. Temperature range: -30°C~70°C
8. Output form: GPRS wireless transmission
9. Communication protocol: Hydrological standard protocol, fully open, easy to integrate into third-party monitoring software10
10. Dimensions: 200*160*100
11. Installation method: bridge measuring square anti-theft well
