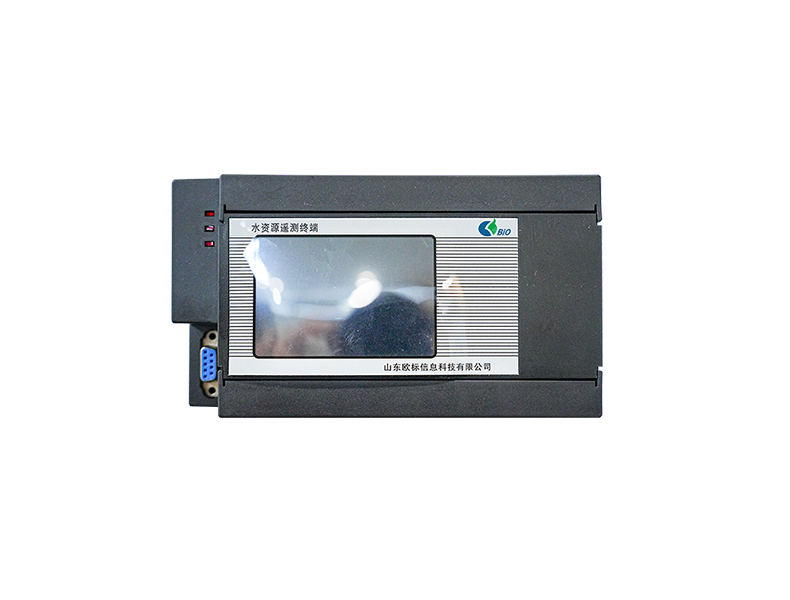

Telemetry Terminal
1. Flexible Adaptation of Display and Network: Provide two display modes for LCD or 4.3-inch touch screen, and support both wireless and wired dual network transmission mechanisms
2. Comprehensive and diverse data collection: It can collect various data such as rainfall, water level, water temperature, flow rate, displacement, gate opening and voltage
3. Excellent safety and storage performance: It has an automatic alarm function for abnormal unpacking to ensure the safety of the equipment; It can store 10 years of historical data to ensure long-term data retention and traceability.
4. Perfect operation and management mechanism: support single center and multi-center modes to adapt to different management structures
5. Timely data interaction response: Support timed data collection, immediate collection and reporting data after the platform issues test commands, and time-period business data query command response to ensure the timeliness and accuracy of data interaction.
Telemetry terminal is used in the field of water resources telemetry, with high-performance and low-power microcontroller as the core, with multiple standard sensor interfaces and multiple communication interfaces, is an intelligent telemetry digital terminal device integrating data collection, display, storage, communication and remote management functions. It greatly improves the ability to monitor water resources, and realizes the measurement and transmission of information such as water level, flow, flow rate, water quality, and pipeline pressure in projects such as irrigation area automation, urban pipe network monitoring, and large water user monitoring. The product realizes multi-channel and large-capacity storage through low-power design, and can realize the collection and transmission of hydrological elements through wired or wireless (GPRS, NB-IOT, LORA, etc.).
Product Features:
1. Display mode: LCD or 4.3 inch touch screen optional
2. Support wireless and wired network transmission mechanisms
3. Support data collection such as rainfall, water level, water temperature, flow, flow rate, displacement, gate opening and voltage.
4. Support image capture, timed selfie, video recording, etc.
5. Abnormal unboxing, automatic upload of alarm information.
6. Data storage: It can store historical data for 10 years.
7. Support single center mode and multi-center mode.
8. Device management: Support device management through serial ports, which can complete parameter query, configuration, restart, and formatting Flash.
9. Log management: The device has the function of local running log recording and storage, and supports local and remote platform extraction.
10. Timed collection: support the timed data collection required by the protocol (collection includes rainfall, water level, flow rate, voltage, etc.).
11. Data calling: Issuing test commands through the platform, and the equipment collects business data and reports it immediately after receiving the instructions.
12. Time period data query: issue time period business data query instructions through the platform, and the device reports the corresponding business data to the platform after receiving the instruction.
