Solar Insect Killer
1.High - Definition Image Capture: It is equipped with a 12 - megapixel high - definition camera, which can automatically take pictures and clearly record pest information.
2.Diverse Power Supply Guarantee: It supports AC power supply of 220V and also has a DC power supply, including a 330W solar panel and a 200Ah battery, which can meet the power supply requirements in different scenarios.
3.Timely Early - Warning Notification: It can automatically count pest data and send it to users via SMS, so that users can timely understand the pest dynamics.
4.Accurate Identification and Counting: It uses the convolutional neural network CNN algorithm pest model to achieve accurate identification and counting of pests.
5.Efficient Pest Killing: The far - infrared pest - killing technology is adopted, with a pest lethality rate of ≥ 90% and a pest integrity rate of ≥ 95%.
6.Orderly Pest Handling: It has an automatic pest - laying - flat function to prevent pests from stacking and ensure the accuracy of identification.
Product Overview

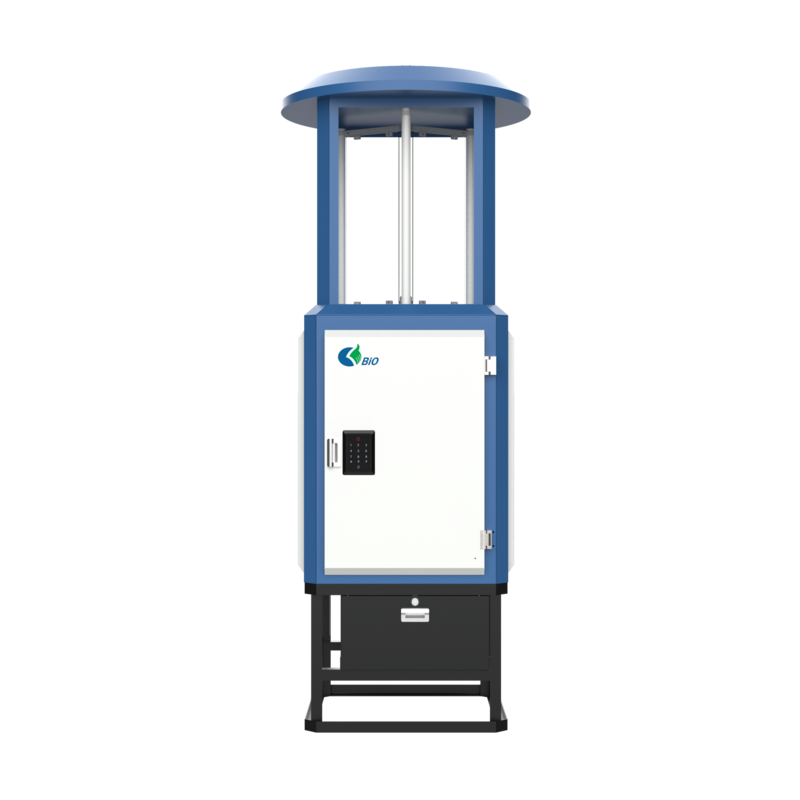

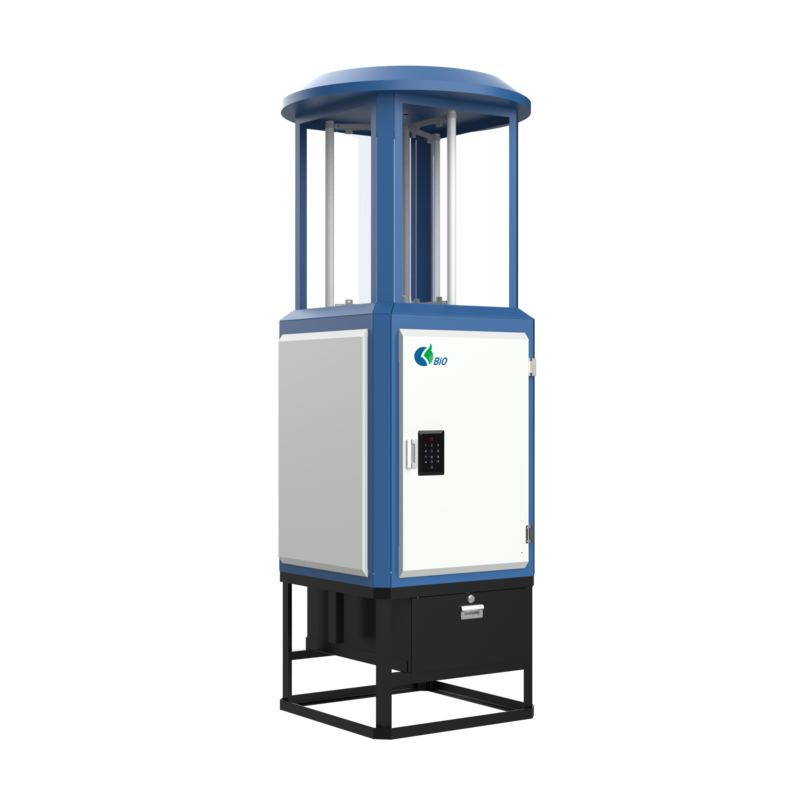

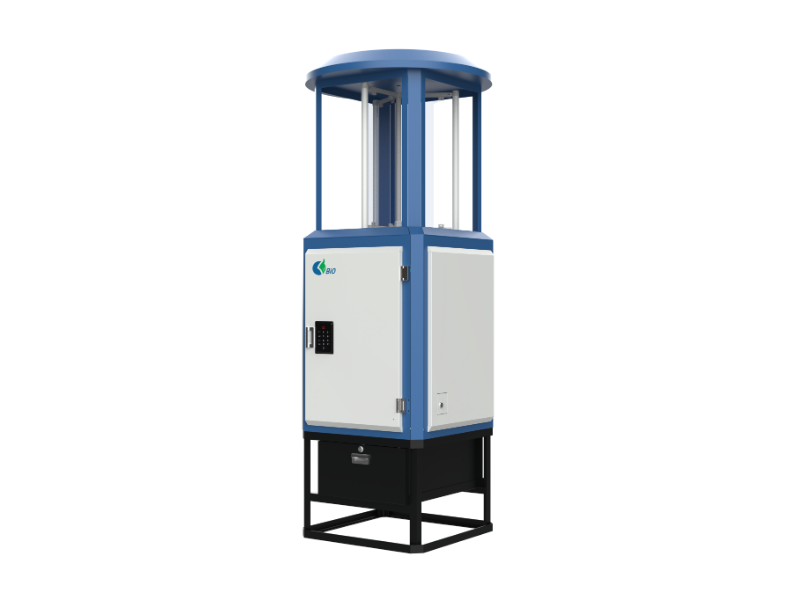

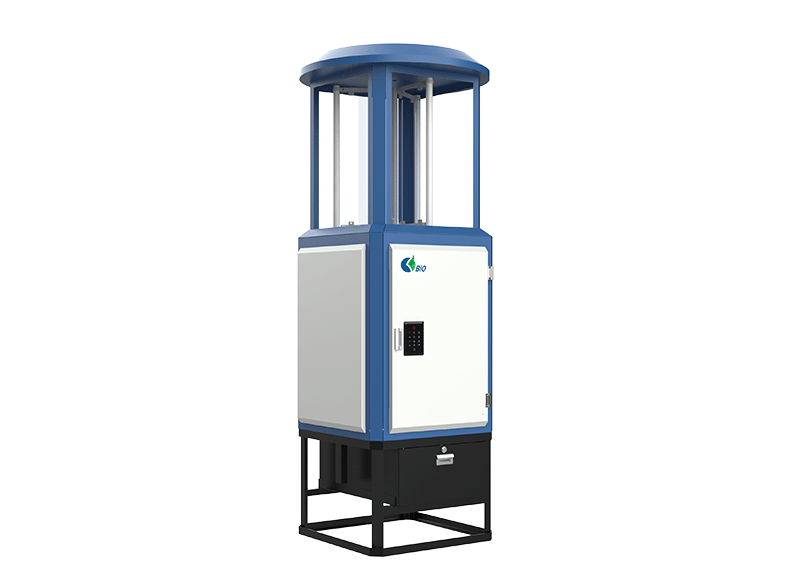

The pest forecasting instrument is a new - generation image - based pest forecasting tool developed by our company, which complies with the standard GB - T24689.1 - 2009. By using modern optical, electrical, numerical control and other technologies, it realizes functions such as automatic far - infrared treatment of trapped pest bodies, conveyor belt - assisted transportation, and automatic operation of the entire lamp. Without human supervision, it can automatically complete system operations such as pest trapping, killing, pest body dispersion, photographing, transportation, collection, and drainage. Then, by using wireless transmission technology and Internet of Things technology, it can upload environmental meteorological and pest situation to the designated agricultural cloud platform in real - time, analyze and predict the occurrence and development of pests, provide services for modern agriculture, and meet the needs of pest forecasting and specimen collection.

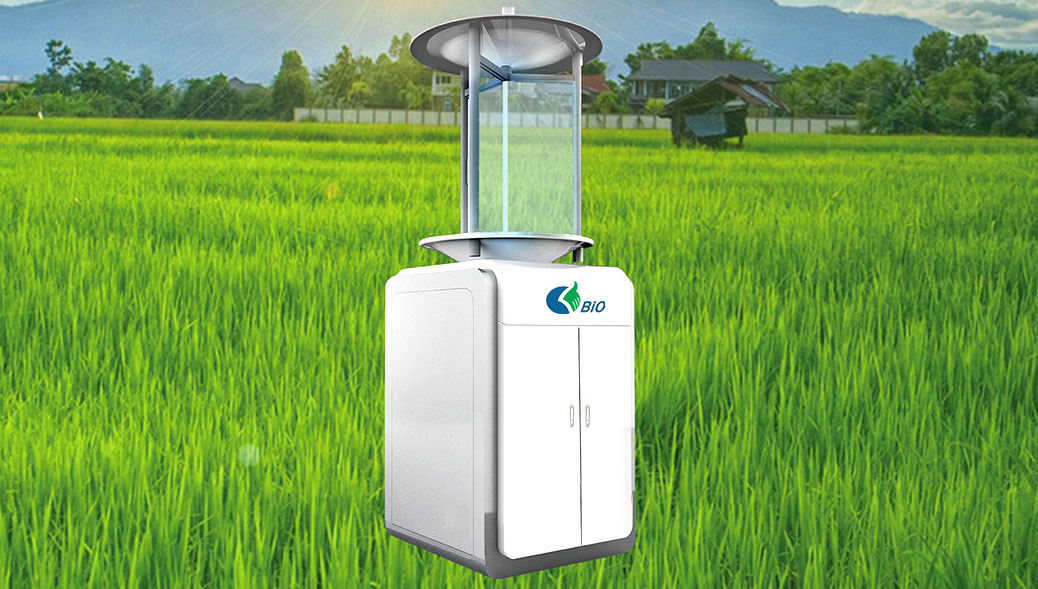

It can be widely used in agriculture, forestry, animal husbandry, vegetable cultivation, tobacco industry, tea industry, medicinal materials cultivation, gardening, orchards, urban greening, quarantine and other fields.
Functional Features
Far - infrared Pest Body Treatment Chambers: With two - layer far - infrared pest body treatment chambers, the lethality rate is not less than 98%, and the pest body integrity rate is not less than 95%.
Rain - Pest Separation Technology: Automatically separates rainwater from insects.
Light - Control Technology: Automatically turns on for detection at night and turns off to standby during the day. In the night working state, it is not affected by instant strong light to change its working state.
High - Definition Camera: Equipped with a 500W high - definition camera, which can clearly distinguish each pest body.
Built - in Positioning Function: Allows users to view device site data and other information on the platform map for easy access.
Remote Manual Control: The insect - attracting lamp, pest - killing chamber, drying chamber, camera, etc. can be remotely controlled manually.
Louver Design: Louvers are installed around the insect - attracting lamp to effectively prevent non - target large insects, leaves and other sundries from entering the device and affecting pest body identification.
Impacting Screens: The impacting screens form an angle of 120 degrees with each other. The size of a single screen is: length 595±2mm, width 213±2mm, and thickness 5mm.
Touch Screen Display: The touch screen can display the current working mode, communication status, real - time temperatures of the pest - killing chamber and drying chamber, current light intensity value, rainfall status, and the current operating status of each component of the device.
Main Technical Indicators
Item | Parameter Details |
| Power Supply Voltage | 220V AC or solar power supply |
| Power Consumption | - Standby: ≤4W - Full lamp power: ≤200W |
| Communication Methods | - 4G upload - Ethernet port upload |
| Operating Environment | - Temperature: 0~70℃ - Relative humidity: 0~95% (non-condensing) |
| Insect Attraction Light | 20W black light tube (main wavelength 365nm) |
| Far-Infrared Pest Treatment Chamber | Temperature reaches 85℃±5℃ after 15 minutes of operation |
| Lamp Startup Time | ≤5S |
| Insulation Resistance | ≥2.5MΩ (with leakage protection) |
| Working Mode | Automatically powers on for detection at night, powers off to standby during the day; unaffected by instant strong light at night |
| Camera Pixel | 500W |
| Device Dimensions | 614.2648.61775.2mm (Length×Width×Height) |
| Display Screen | 7-inch touch display screen (optional) |
